Description

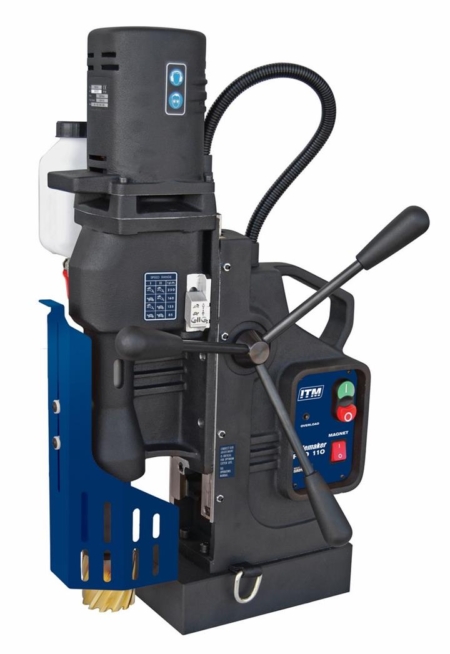

The Holemaker PRO 110 is an extra heavy duty, large capacity machine capable of producing burr-free holes up to 110mm diameter by 110mm depth. 1650w motor with 4-speed mechanical gearbox produces superb torque through gear reduction in low speeds. #4 morse taper spindle bore for use with taper shank drills, tapping head (M30 Capacity) and taper shank reamers. Supplied complete with side mounted coolant system and arbor for use with 3/4 shank Holemaker Cutters up to 75mm diameter and 75mm depth of cut. Optional arbor to take 1-1/4" shank cutters up to 110mm diameter and 110mm depth. 1L pressure feed coolant bottle available, recommended for use with large diameter and depth hole drilling Capacity (Diameter): 110mm Capacity (Depth): 110mm Capacity (Twist Drill): #4 Morse Taper 47mm Motor Power: 1650Watt Input Power: 1800Watt Single Phase 240V Gearbox: 4 Speed Heavy Duty Mechanical Gearbox: 85/135/160/ 250rpm Weight: 31.0kg Magnetic Dead Lift: 22000N-m on 25mm Steel Plate Stroke: 230mm Height ( min / max ): 566mm / 780mm
