Description

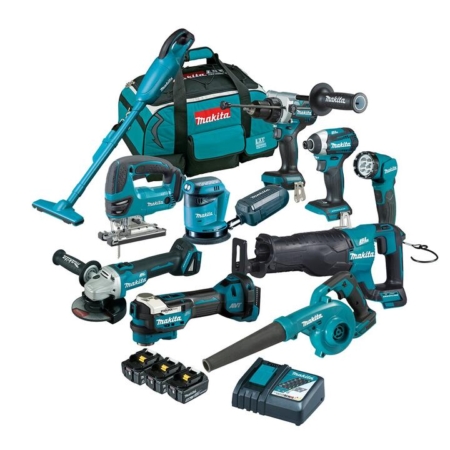

Includes DHP486Z – 18V Brushless Hammer Drill Driver DTD154Z – 18V Brushless 4-Mode Impact Driver DGA504Z – 18V Brushless 125mm (5") Slide Switch Angle Grinder DJR187Z – 18V Brushless Recipro Saw DTM52ZX3 – 18V Brushless Multi-Tool DJV180Z* – 18V D-Handle Jigsaw DBO180Z* – 18V 125mm Random Orbital Sander DCL180Z* – 18V Stick Vacuum Cleaner DUB185Z* – 18V Blower DML815 – 18V LED Torch DC18RC – Single Port Rapid Charger BL1850B – 3x 18V 5.0Ah Batteries 199936-9 – Tool Bag *Brushed Tool DHP486Z – 18V Brushless Hammer Drill Driver Massive drilling capacity with 152mm hole saw and 50mm auger bit capacity High powered Brushless motor produces 141Nm peak torque Compact overall length only 178mm for use in narrow work spaces High durability aluminium gear housing Mechanical 2 speed gearing with all metal gear construction Impact Rate Hi: 0 – 31,500ipm Lo: 0 – 8,250ipm Max. drilling capacities in masonry: 16mm Max. drilling capacities in steel: 13mm Max. drilling capacities in wood Auger bit: 50mm Self-feeding bit: 76mm Hole saw: 152mm Max. lock torque: 125Nm Max. tightening torque Hard: 130Nm Soft: 65Nm No Load Speed Hi: 0 – 2,100rpm Lo: 0 – 550rpm Skin weight: 2.1kg Voltage: 18V Weight (with battery): 2.7kg Includes Grip assembly (127701-6) Depth rod (122576-8) Belt clip (346317-0, 251314-2) DTD154Z – 18V Brushless 4-Mode Impact Driver Brushless motor for more power and longer runtimes Aluminium hammer case One touch bit installation Electronic 3 stage impact selection T:mode for self drilling screws Variable speed control by trigger Ergonomically designed handle Impact Rate – 1st: 0-3,800ipm Impact Rate – 2nd: 0-2,600ipm Impact Rate – 3rd: 0-1,100ipm Max Fastening Torque: 175N.m Net Weight: 1.5kg w/BL1860B No Load Speed – 1st: 0-3,600rpm No Load Speed – 2nd: 0-2,100rpm No Load Speed – 3rd: 0-1,100rpm Overall Length: 117mm Specifications – Capacity – Coarse Thread: 22-125mm Specifications – Capacity – High Tensile Bolt: M5-M14 Specifications – Capacity – Machine Screws: M4-M8 Specifications – Capacity – Standard Bolt: M5-M16 DGA504Z – 18V Brushless 125mm (5") Slide Switch Angle Grinder Powerful Brushless DC motor (BLDC) Slide switch Automatic Torque Drive – changes the cutting speed to load condition for an optimum operation Battery fuel gauge Gear housing can be rotated to suit most cutting and grinding applications Anti-restart function prevents accidental start-up Concrete cutting depth of 20mm Extreme Protection Technology with enhanced dust and drip resistant performance Compatible with 1.5, 3.0, 4.0 and 5.0Ah Lithium-Ion batteries Net Weight: 2.5kg No Load Speed: 8,500rpm Overall Length: 362mm Wheel Size: 125 x 22mm Includes 125mm Grinding Disc Side Grip (153489-2) Tool-less Guard (125267-0) Lock Nut Wrench (782407-9) DJR187Z – 18V Brushless Recipro Saw BL Brushless Motor design Newly designed vertical crank mechanism large 32mm stroke length Retractable sky hook Electronic 2 speed Tool-less shoe adjustment Tool-less blade change LED joblight Length of Stroke: 32mm Max Cutting Capacities – In Pipe: 130mm Max Cutting Capacities – In Wood: 255mm Net Weight: 3.7kg with BL1850 Overall Length: 439mm Strokes Per Minute: Hi: 0-3,000 / Lo: 0-2,300spm DTM52ZX3 – 18V Brushless Multi-Tool Starlock Max accessory mounting system designed for heavy duty applications Anti-Vibraton Technology (AVT) with a counterbalance system significantly reducing vibration Increased cutting efficiency with improved oscillation angle of 3.6° for rapid cutting speeds Variable speed control dial for adjusting the speed to suit the application Tool-less lever lock system allows for quick install and removal of accessories Oscillation Angle, Left/Right: 1.8° (3.6° total) Oscillation per minute: 10,000 – 20,000opm Skin weight: 1.4kg Voltage: 18V Weight (with battery): 2.0kg Includes: Bow Shape Plunge Cut Saw Blade (B-66329) DJV180Z* – 18V D-Handle Jigsaw Tool-less blade change for quick and convenient blade changes Variable speed control by trigger for more accurate cutting 26mm stroke length at 2,600rpm for rapid cutting Blower function blows saw dust off the cutting line 3 orbital cut settings & straight cutting to suit each specific application Bevel Capacity: 45° left – 45° right Length of Stroke: 26mm Max. cutting capacities in aluminium: 20mm Max. cutting capacities in steel: 10mm Max. cutting capacities in wood: 135mm Overall Length: 257mm Skin weight: 2.2kg Strokes per minute: 0-2,600spm Voltage: 18V Weight (with battery): 2.8kg Includes 6 Piece Blade Set Anti Splintering Device Cover Plate Hex Wrench DBO180Z* – 18V 125mm Random Orbital Sander Compact design with a short height and a lower centre of gravity fro easier handling and more manoeuvrbaility Excellent performance with high orbital speed and a 2.8mm orbit diameter Electronic push button switch: Start/Speed setting button, Independent stop button High dust extraction rate: Dust is extracted through a 8 hole under pad and collected into the dust box Dust nozzle can be set at 12
